TransmeIoT Smart Energy Monitor
Views: 2 Author: Site Editor Publish Time: 2024-06-21 Origin: Site
Specification:
Item Type: Energy Monitor
Model: TM-WF-EG01
Support Systems: for Google Home
WIFI: 802.11 B G N20 40 at 2.4GHz
Working Voltage: AC100-250V 50/60Hz
Measuring Current Range: 0.2-80A
Calibration Measurement Accuracy: ≤100W (within ±2W), >100W (within ±2%)
Report Cycle: Every 15 seconds
Temperature Range: -20℃ to 55℃
Humidity Range: ≤90% non condensing
Features:
1. Compatible with for Tuya
2. Support click to run and automate with other for Tuya devices
3. Compatible with single phase electricity
4. Support energy production measurement
5. Measure real time energy usage, voltage, current, power factor, active power, and frequency
6. Power statistics, power usage percentage display to avoid abnormal electricity usage
7. Monitor the working status of equipment
8. Rich Functions: Automatic setting of valve values and push notifications
9. For residential and commercial applications
10. Simple and safe installation
How to Use:

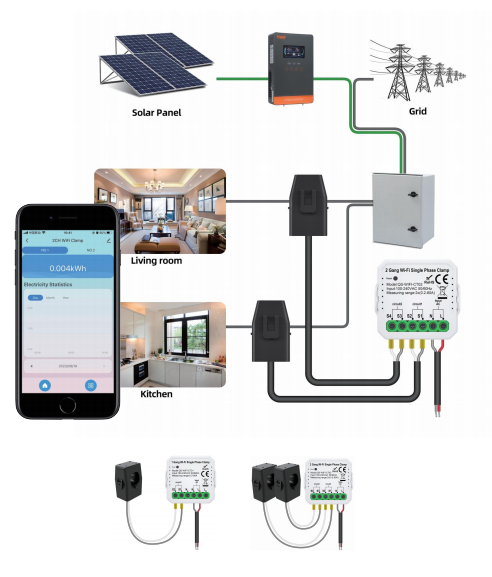

Wiring installation and use, please refer to the manual for specific operations.
